K2C Hardware Introduction

Abstract

KICKPI-K2C is powered by Allwinner's H618 SoC, the typical working scenarios are digital signage client,smart TV boxes, smart screens, and IoT etc.

Product Definition

Diagram

image-20250930114534020

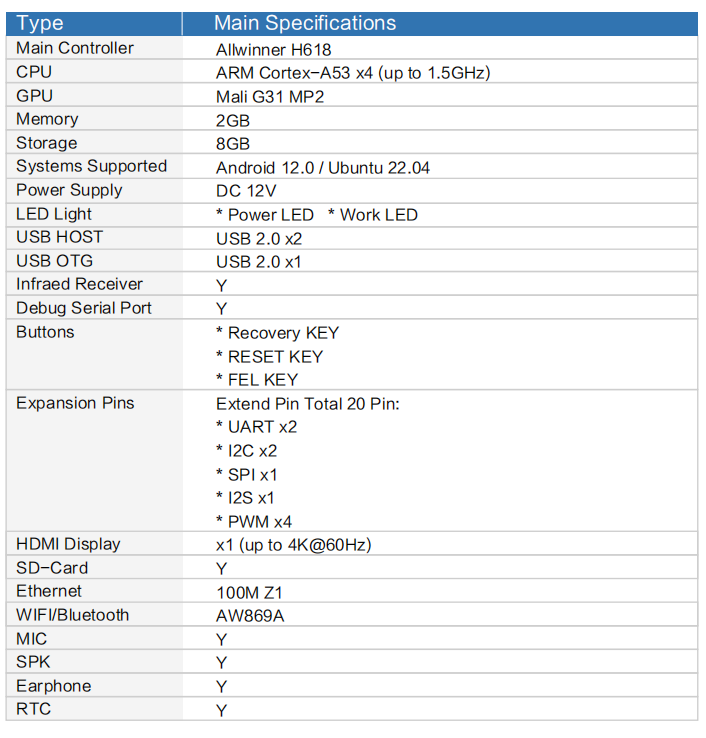

Specification

image-20251014105048352

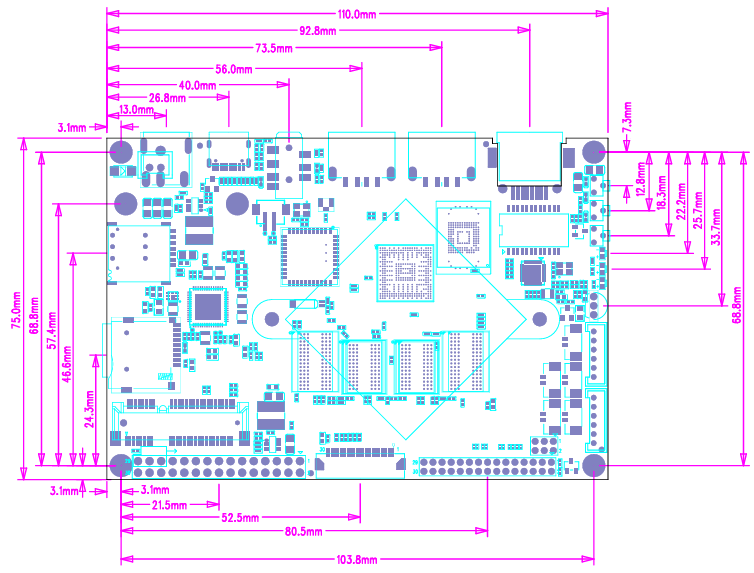

Physical Specification

Pinout

The K2C is equipped with 20-pin socket.

Note

1. Functions marked with an asterisk (*) in the diagram are default software-configured functions. To configure them for other purposes, modification of the source code is required.
2. DEBUG_UART0_RX/TX is configured as serial debugging by default, and it is not recommended to use it as a regular serial port or for other functions.
3. TWI is equivalent to I2C: TWI1_SCK/TWI1_SDA are the same as I2C_CLK/I2C_SDA.

SoC Specification

Working Scenarios

  • Digital Signage：It is suitable for working as Digital Signage client whIch includes onboard RTC support and 4G-LTE support .

  • Home Entertainment：It is suitable for scenarios such as smart TV boxes, supports 4K@60fps video encoding, and can provide users with a clear and smooth video playback experience.

  • Smart Home：It supports access to various sensors and peripheral devices, and enables the interconnection and centralized control of smart home devices.

  • IoT Devices：It is widely used in the Internet of Things (IoT) field, such as intelligent monitoring devices and intelligent environmental monitors, enabling the collection, processing and transmission of data.

  • Development Platform：It adopts Allwinner H618 as the main control chip, providing an ideal development platform for professionals in the embedded and computing industries.
