K4B Hardware Introduction
Abstract
The KICKPI-K4B can be used as a smart TV box or an IoT device.
Product Definition

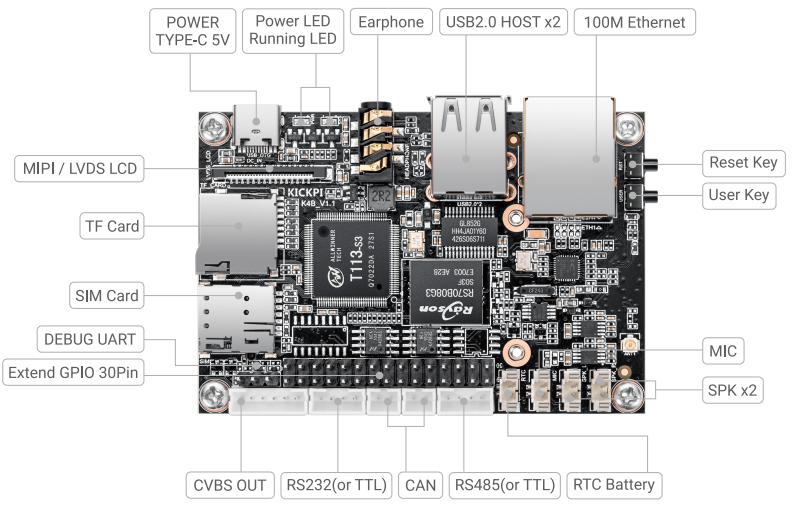

Diagram

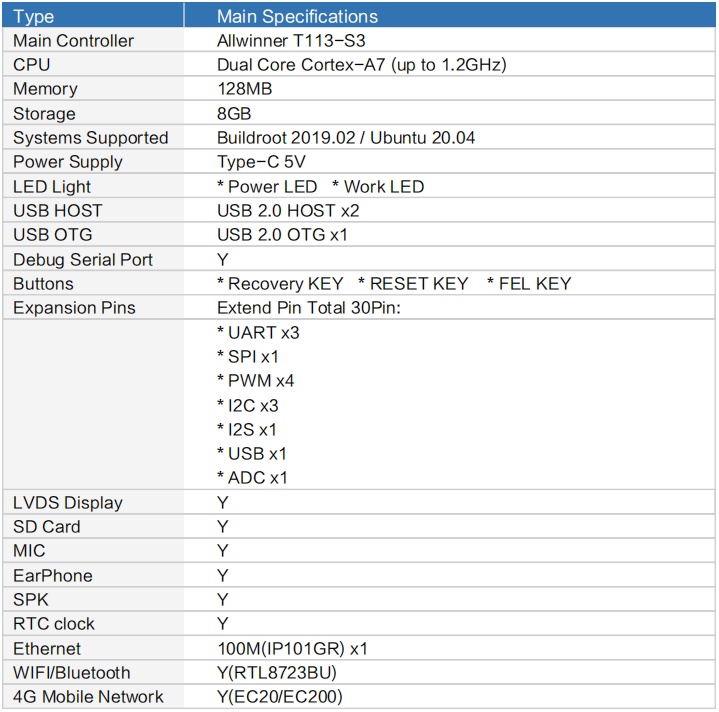

Specification

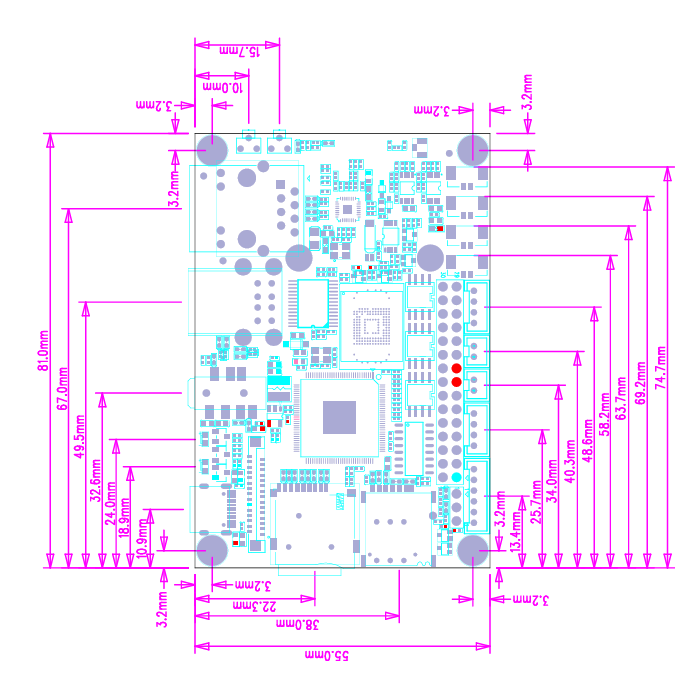

Physical Specification

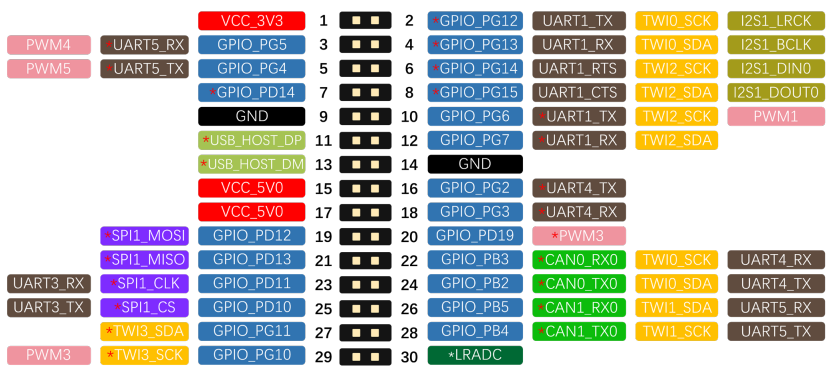

Pinout
The K4B is equipped with 30-pin extension pins.
SoC Specification
The KICKPI-K4B can be used as a smart TV box or an IoT device.
The K4B is equipped with 30-pin extension pins.
