K5C Hardware Introduction

Abstract

The KICKPI-K5C can be used as a smart tablet or an IoT device.

Product Definition

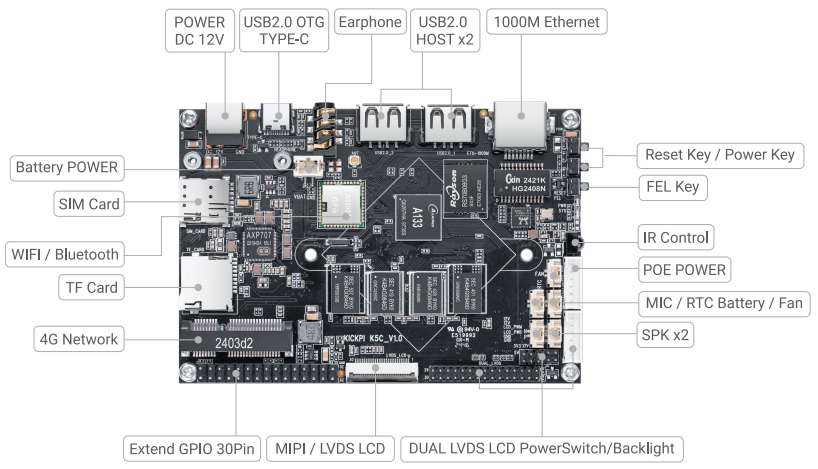

Diagram

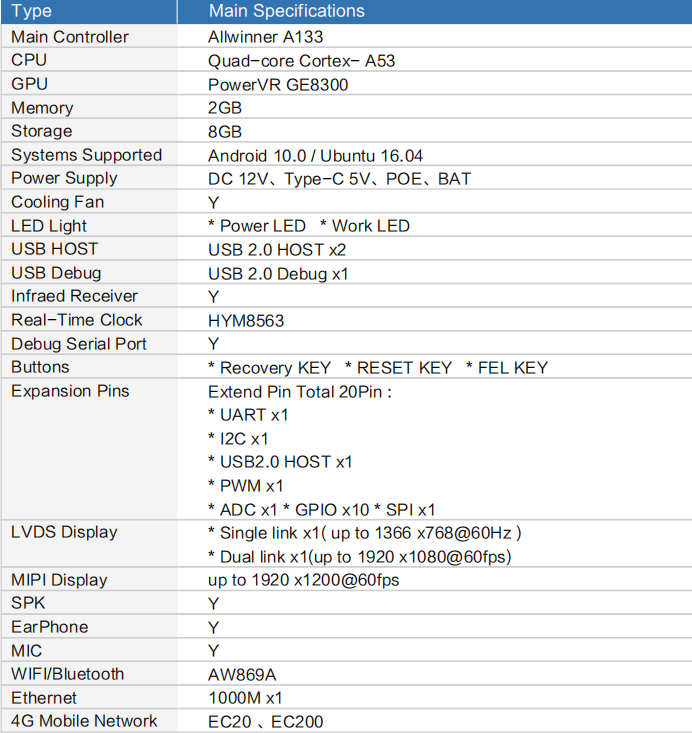

Specification

Physical Specification

Pinout

The K2C is equipped with 30-pin socket.

Note

1. Functions marked with * in the image are the software default configurations. To configure them for other functions, please modify the source code.
2. DEBUG_UART0_RX / TX are configured by default for serial debugging; it is not recommended to use them as a regular UART or for other functions.
3. TWI is I2C: TWI1_SCK/TWI1_SDA are equivalent to I2C_CLK/I2C_SDA.

SoC Specification

Working Scenarios

  • Home Entertainment：It is suitable for scenarios such as smart TV boxes, supports 4K@60fps video encoding, and can provide users with a clear and smooth video playback experience.

  • Smart Home：It supports access to various sensors and peripheral devices, and enables the interconnection and centralized control of smart home devices.

  • IoT Devices：It is widely used in the Internet of Things (IoT) field, such as intelligent monitoring devices and intelligent environmental monitors, enabling the collection, processing and transmission of data.

  • Development Platform：It adopts Allwinner A133 as the main control chip, providing an ideal development platform for professionals in the embedded and computing industries.
