K7 Hardware Introduction
Abstract
The KICKPI-K7 can be used as a smart TV box or an IoT device.
Product Definition

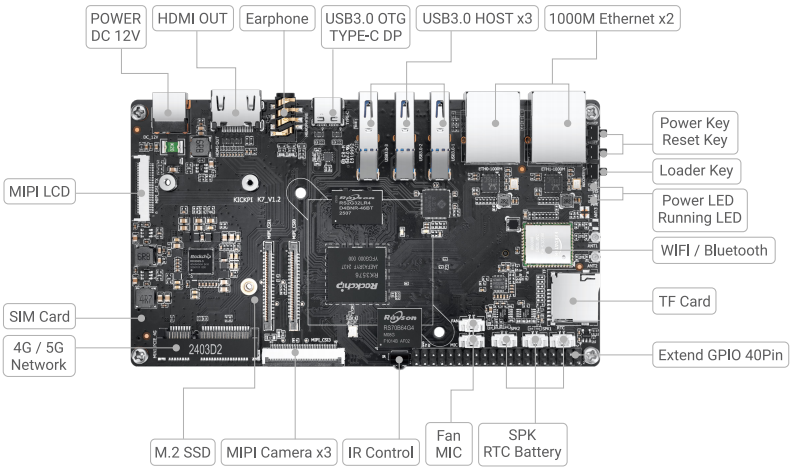

Diagram

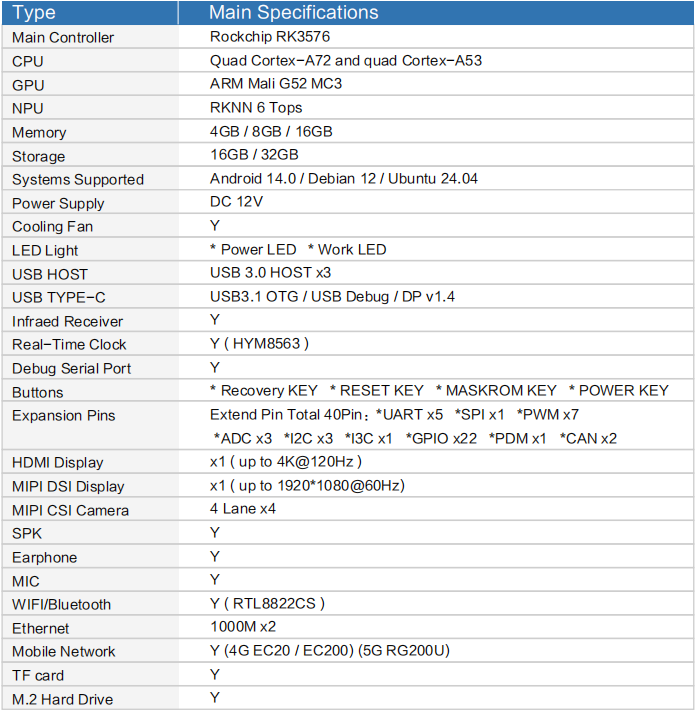

Specification

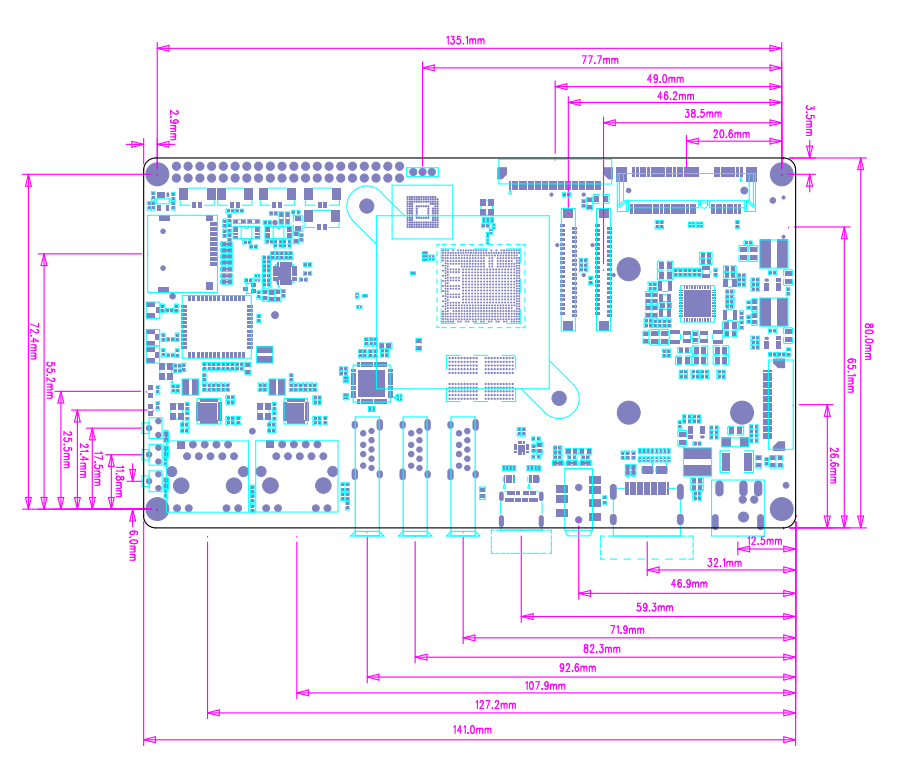

Physical Specification

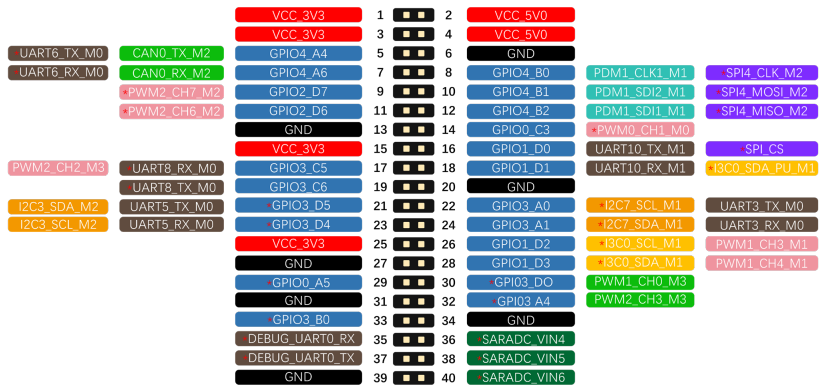

Pinout
The K7 is equipped with 40-pin extension pins.
SoC Specification
The KICKPI-K7 can be used as a smart TV box or an IoT device.
The K7 is equipped with 40-pin extension pins.
